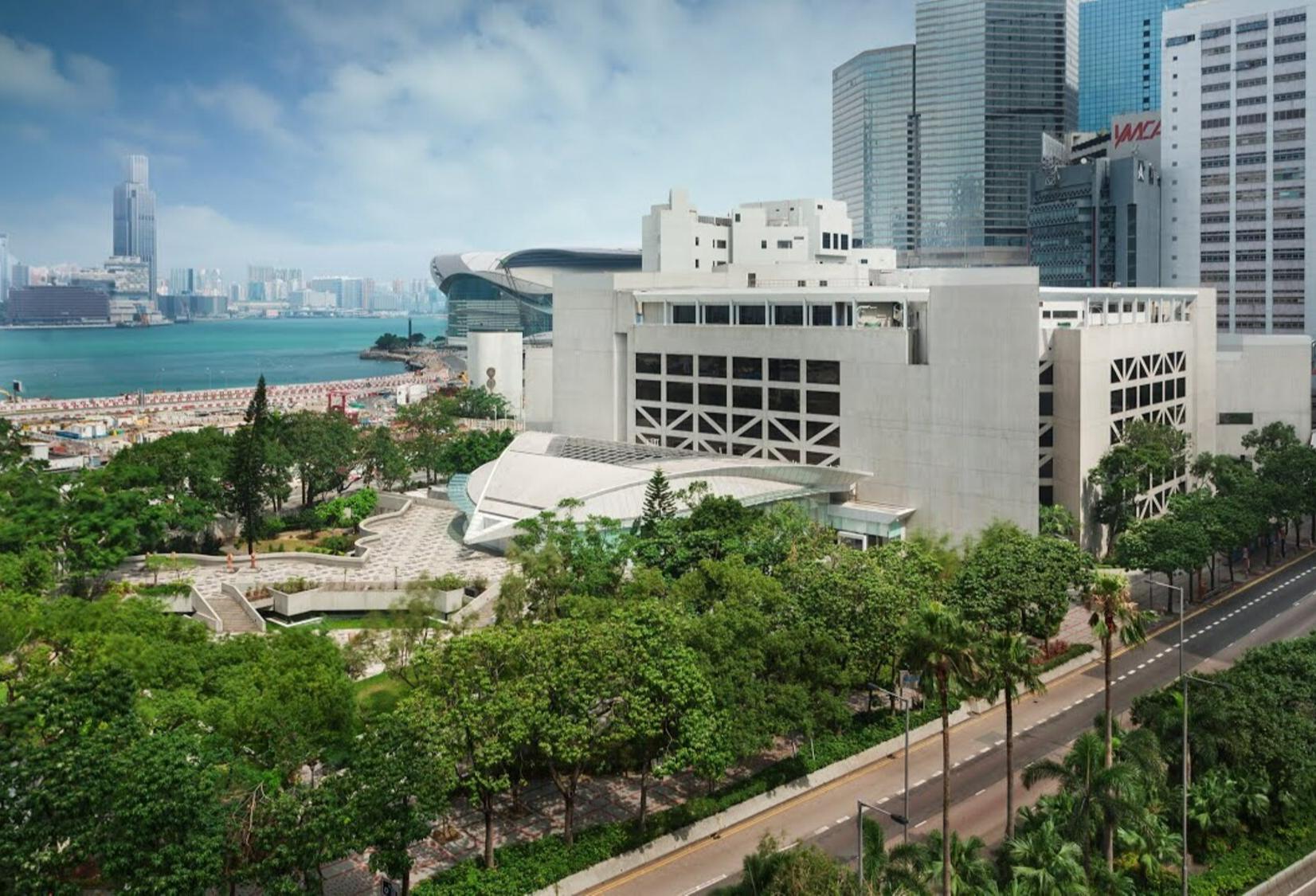

The Hong Kong Academy
for Performing Arts
The Hong Kong Academy for Performing Arts is a leading tertiary institution for the performing arts in Asia and It provides professional undergraduate education and practice-based postgraduate studies. Completed in October 2019, Audio Systems Consultants (Asia) mainly responsible contains infrastructure system of cabling and facility panel with representative connectors, which included Audio tie-line, Speaker tie-line, Video tie-line, Fiber tie-line, and Copper tie-line and DMX tie-line.
The cabling structures and connectors of master facility panel vary depending on the quantity of others facility panel type. Since the master panel is the head end of all other panel located in the same room. Then, each master panel delivers a set of 12 core fiber and 4 pcs Cat6 cable to the IT Closet for client’s further usage.
For the Music Lecture Room at 7th Floor installed three channels of Yamaha VXC6W Ceiling Speaker, the connection wired to the facility panel 1 with portable Yamaha XMV4280-D amplifier and Yamaha CL1 audio console. The console & amplifier are installed in the portable equipment rack. It can connect to one of the GFP and makes the audio system works. For the projection system, it used Draper Rollermania Electric 165” motorized screen, there are up/down/stop button wall mount beside the screen for operation. For the projector lift, it uses SVS Mini7-4 to carry the projector provided by client.
This project mainly connectors system, the processing engineering installation and design is similar to the previous projects and we have a professional team, so that in the face of time pressing problems can be completed on time, customers have a good impression on us.
